Before you can start using LiveDocx, you must first » sign up for an account. The account is completely free of charge and you only need to specify a username, password and e-mail address. Your login credentials will be dispatched to the e-mail address you supply, so please type carefully.

LiveDocx differentiates between the following terms: 1) template and 2) document. In order to fully understand the documentation and indeed the actual API, it is important that any programmer deploying LiveDocx understands the difference.

The term template is used to refer to the input file, created in a word processor, containing formatting and text fields. You can download an » example template, stored as a DOCX file. The term document is used to refer to the output file that contains the template file, populated with data - i.e. the finished document. You can download an » example document, stored as a PDF file.

LiveDocx supports the following file formats:

The document generation process can be simplified with the following equation:

Template + Data = Document

Or expressed by the following diagram:

Data is inserted into template to create a document.

A template, created in a word processing application, such as Microsoft Word, is loaded into LiveDocx. Data is then inserted into the template and the resulting document is saved to any supported format.

Start off by launching Microsoft Word and creating a new document. Next, open up the Field dialog box. This looks as follows:

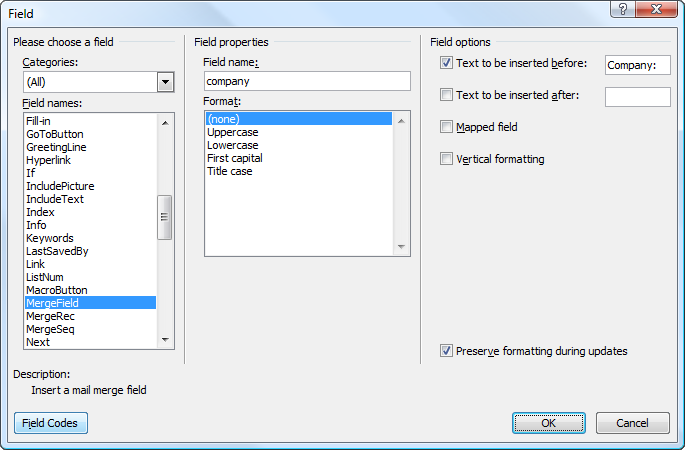

Microsoft Word 2007 Field dialog box.

Using this dialog, you can insert the required merge fields into your document. Below is a screenshot of a license agreement in Microsoft Word 2007. The merge fields are marked as { MERGEFIELD FieldName }:

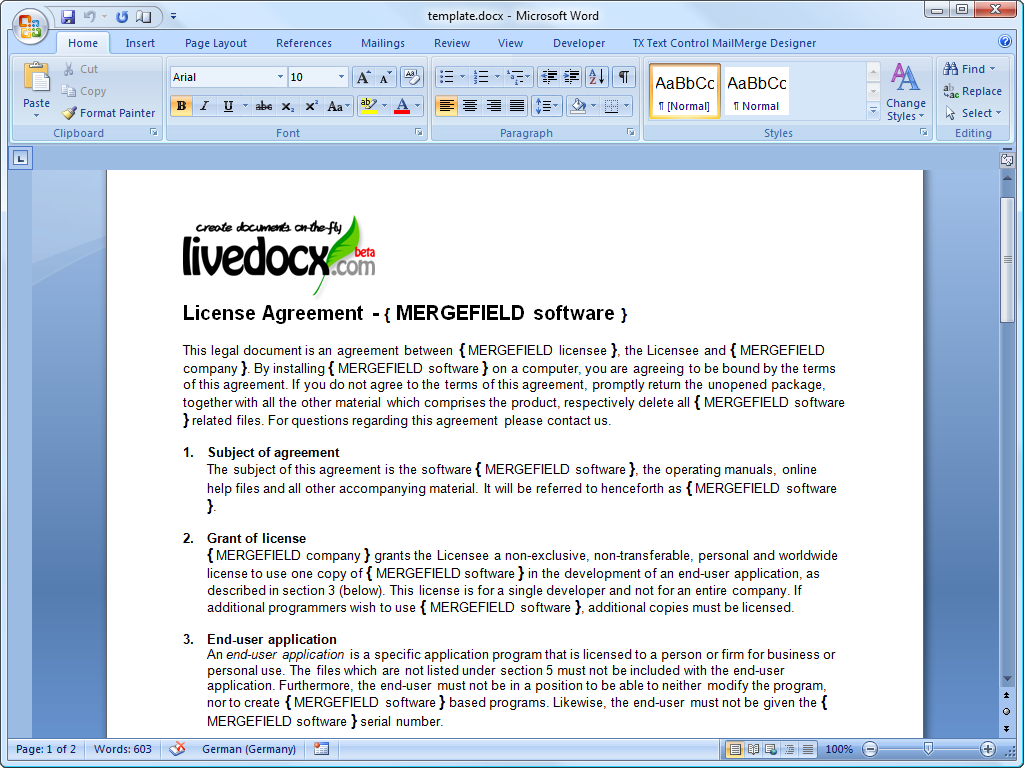

Template in Microsoft Word 2007.

Now, save the template as template.docx.

In the next step, we are going to populate the merge fields with textual data from PHP.

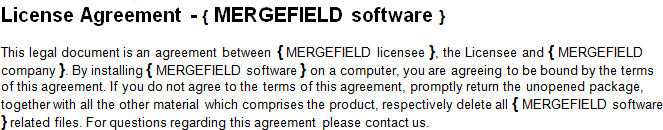

Cropped template in Microsoft Word 2007.

To populate the merge fields in the above cropped screenshot of the » template in Microsoft Word, all we have to code is as follows:

The resulting document is written to disk in the file document.pdf. This file can now be post-processed, sent via e-mail or simply displayed, as is illustrated below in Document Viewer 2.26.1 on Ubuntu 9.04:

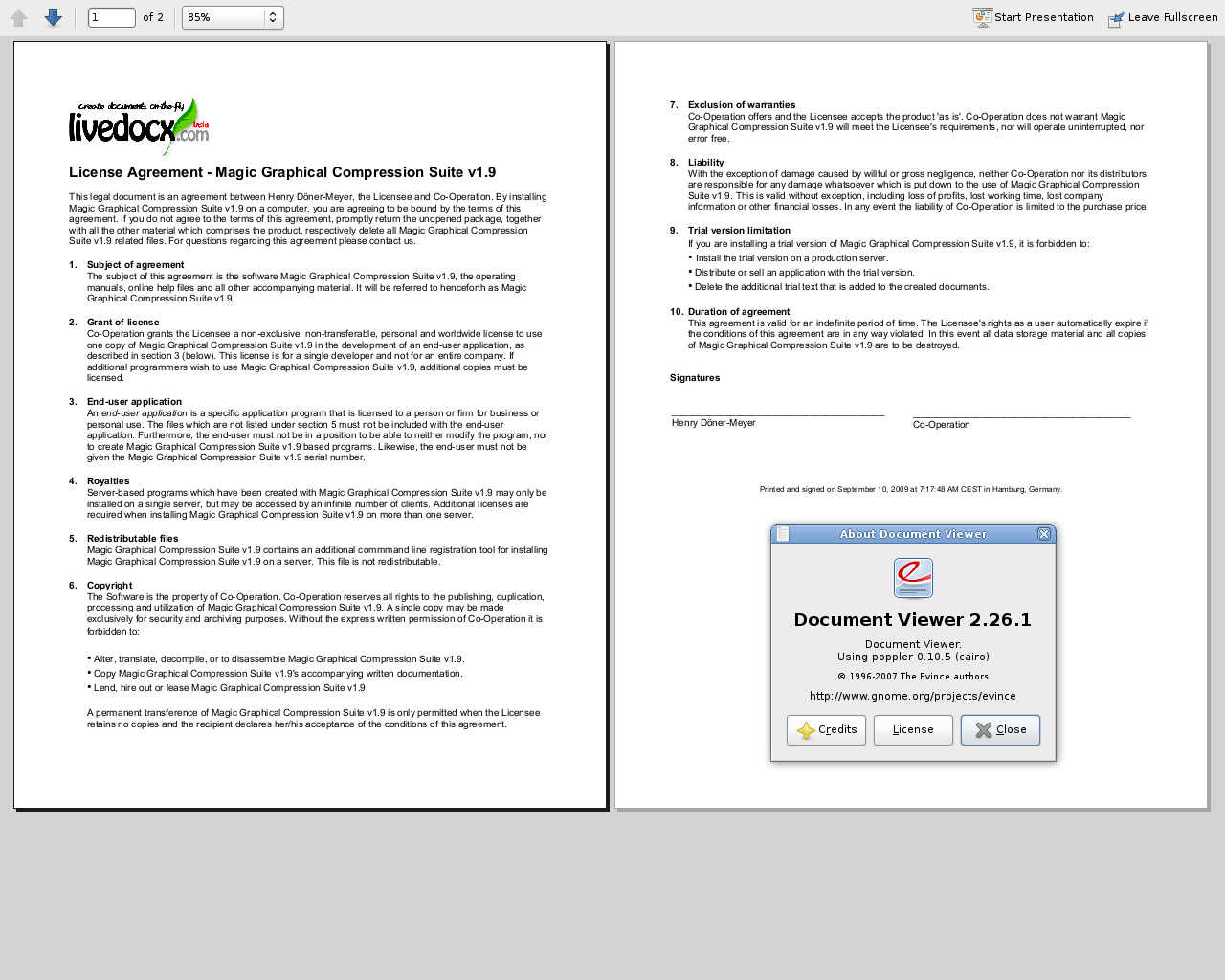

Resulting document as PDF in Document Viewer 2.26.1.

Using Zend_Service_LiveDocx_MailMerge it is also possible to merge images into a template. This feature is useful, for example, in the case of a badge application for a conference. In addition to the name and company name that should appear on the badge, it is possible to insert a photo of the delegate, using the API.

Even it is sounds a little counter-intuitive, image-merging also work with text fields, as described in the section above. In fact, inserting a text field for an image is identical to inserting a text field for textual information. The only difference is the naming convention of the text field. Whereas, a text field for textual information can have (almost) any identifier, a text field for an image must start with image:. For example, in the case of our badge application, we would have the following 3 fields:

The text field, into which image data will be inserted is called image:photo and can be populated just like any other text field, using the assign method. The text fields name and company are regular text fields for textual information.

Before we insert graphic data, we first have to upload the image to the backend LiveDocx server. This can be achieved using the uploadImage($filename) method.

The following code snippet illustrates the flow:

Note that all images uploaded to your LiveDocx account must have a unique filename. In the case that you only intend to use the image once (such as is probable for our badge application), it makes sense to immediately delete it from the backend, using the deleteImage($filename) method.

Zend_Service_LiveDocx_MailMerge allows designers to insert any number of text fields into a template. These text fields are populated with data when createDocument() is called.

In addition to text fields, it is also possible specify regions of a document, which should be repeated.

For example, in a telephone bill it is necessary to print out a list of all connections, including the destination number, duration and cost of each call. This repeating row functionality can be achieved with so called blocks.

Blocks are simply regions of a document, which are repeated when createDocument() is called. In a block any number of block fields can be specified.

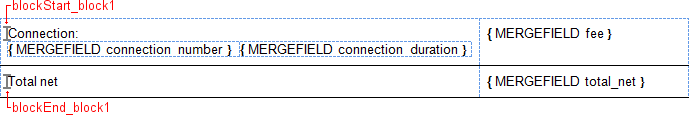

Blocks consist of two consecutive document targets with a unique name. The following screenshot illustrates these targets and their names in red:

The format of a block is as follows:

For example:

The content of a block is repeated, until all data assigned in the block fields has been injected into the template. The data for block fields is specified in PHP as a multi-assoc array.

The following screenshot of a template in Microsoft Word 2007 shows how block fields are used:

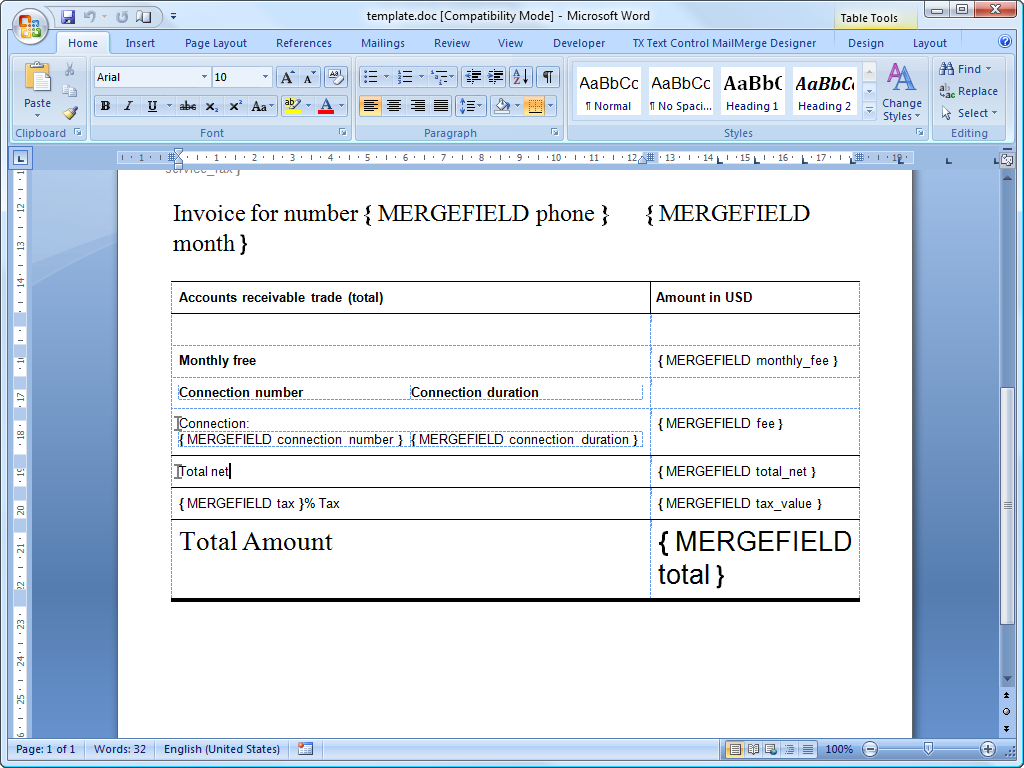

Template, illustrating blocks in Microsoft Word 2007.

The following code populates the above template with data.

The data, which is specified in the array $billConnections is repeated in the template in the block connection. The keys of the array (connection_number, connection_duration and fee) are the block field names - their data is inserted, one row per iteration.

The resulting document is written to disk in the file document.pdf. This file can now be post-processed, sent via e-mail or simply displayed, as is illustrated below in Document Viewer 2.26.1 on Ubuntu 9.04:

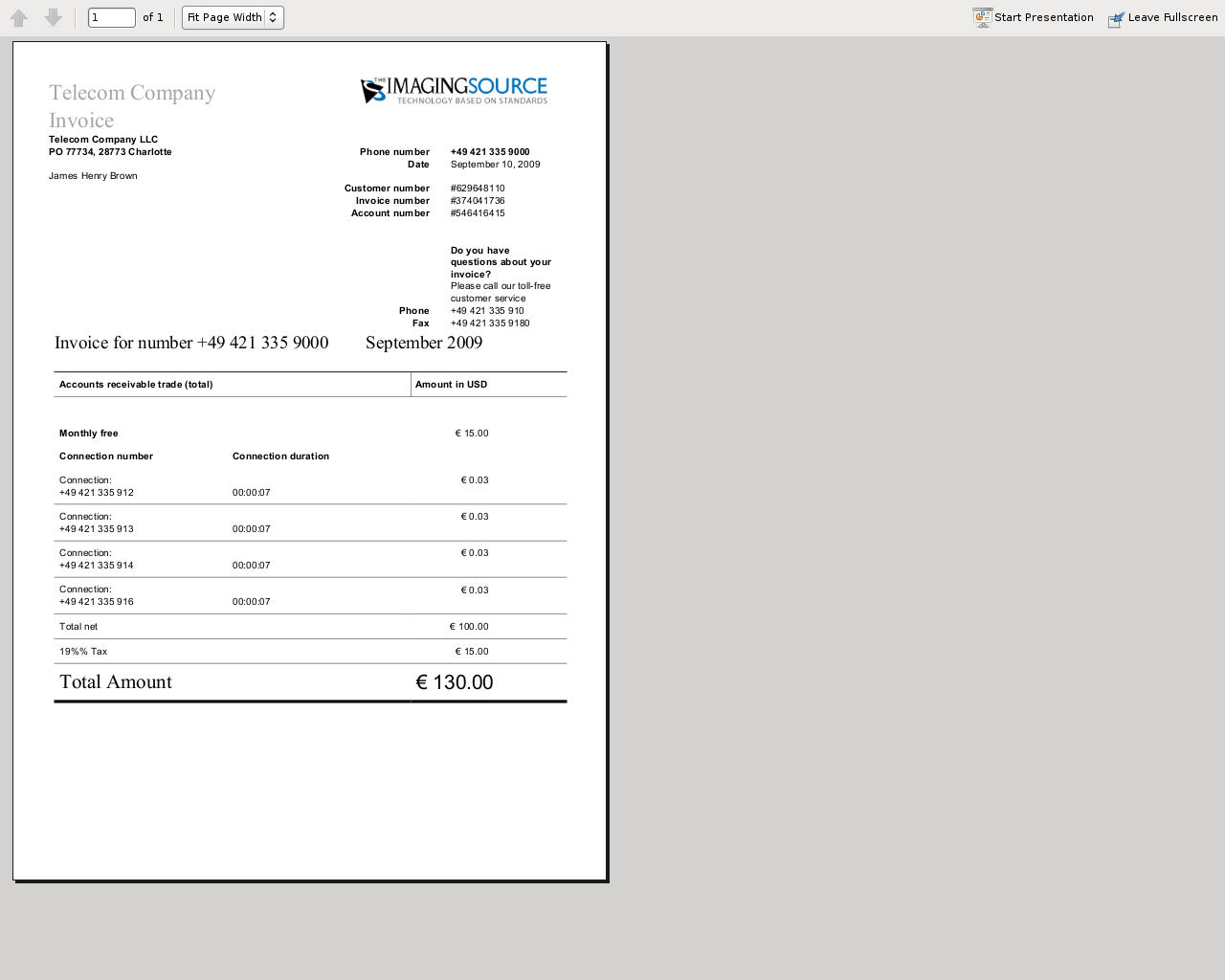

Resulting document as PDF in Document Viewer 2.26.1.

You can download the DOC » template file and the resulting » PDF document.

NOTE: blocks may not be nested.

In addition to document file formats, Zend_Service_LiveDocx_MailMerge also allows documents to be exported to a number of image file formats (BMP, GIF, JPG, PNG and TIFF). Each page of the document is saved to one file.

The following sample illustrates the use of getBitmaps($fromPage, $toPage, $zoomFactor, $format) and getAllBitmaps($zoomFactor, $format).

$fromPage is the lower-bound page number of the page range that should be returned as an image and $toPage the upper-bound page number. $zoomFactor is the size of the images, as a percent, relative to the original page size. The range of this parameter is 10 to 400. $format is the format of the images returned by this method. The supported formats can be obtained by calling getImageExportFormats().

This produces two files (documentPage1.png and documentPage2.png) and writes them to disk in the same directory as the executable PHP file.

documentPage1.png.

documentPage2.png.

Templates can be stored locally, on the client machine, or remotely, on the server. There are advantages and disadvantages to each approach.

In the case that a template is stored locally, it must be transfered from the client to the server on every request. If the content of the template rarely changes, this approach is inefficient. Similarly, if the template is several megabytes in size, it may take considerable time to transfer it to the server. Local template are useful in situations in which the content of the template is constantly changing.

The following code illustrates how to use a local template.

In the case that a template is stored remotely, it is uploaded once to the server and then simply referenced on all subsequent requests. Obviously, this is much quicker than using a local template, as the template does not have to be transfered on every request. For speed critical applications, it is recommended to use the remote template method.

The following code illustrates how to upload a template to the server:

The following code illustrates how to reference the remotely stored template on all subsequent requests:

Zend_Service_LiveDocx_MailMerge provides a number of methods to get information on field names, available fonts and supported formats.
